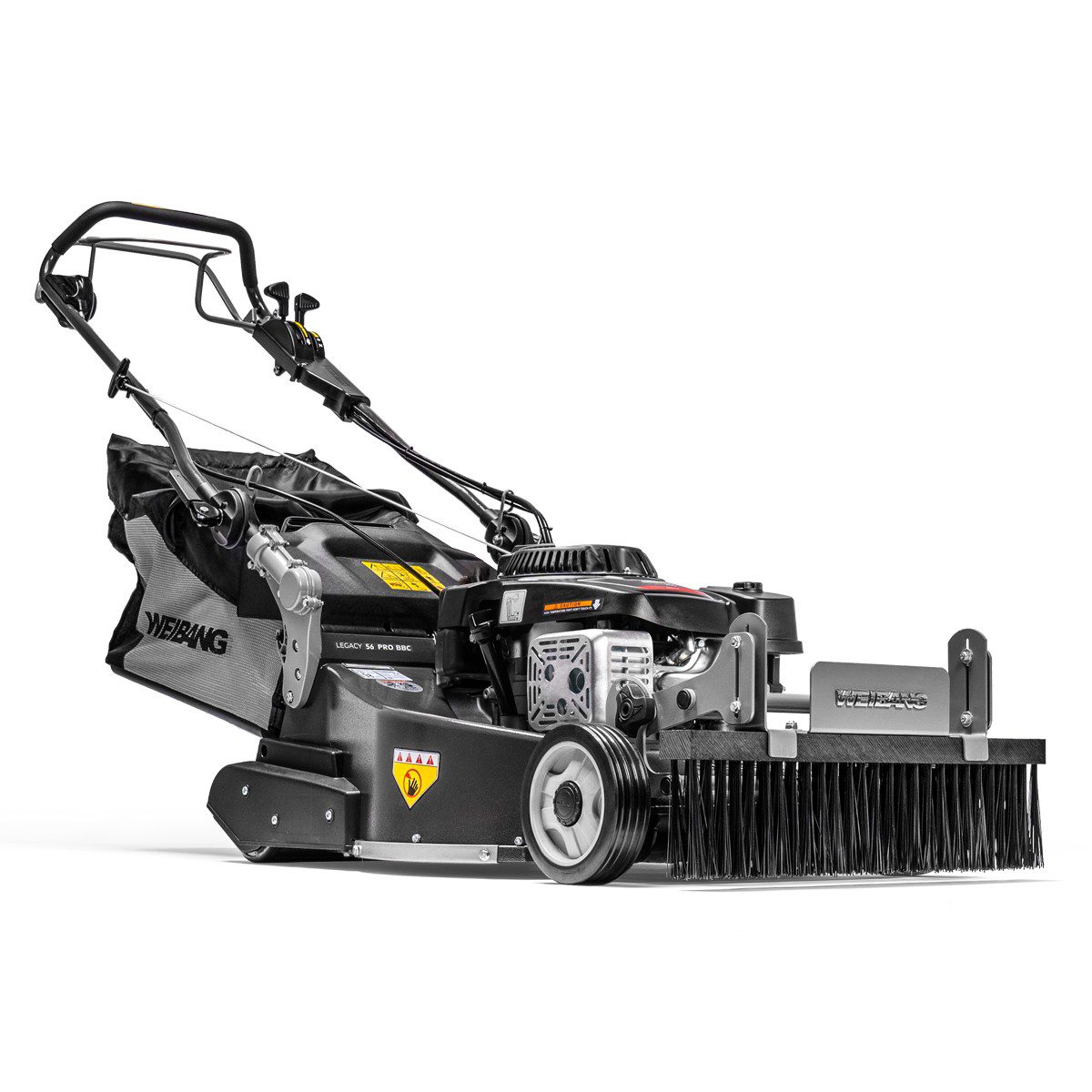

The Legacy 56 PRO BBC LV rear roller from WEIBANG offers uncompromising quality, performance and durability, as well as an unrivalled cut for formal areas requiring a traditional striped finish, such as formal lawns or sports pitches.

Weibang Legacy 56 PRO LV Rear Roller Lawnmower Features

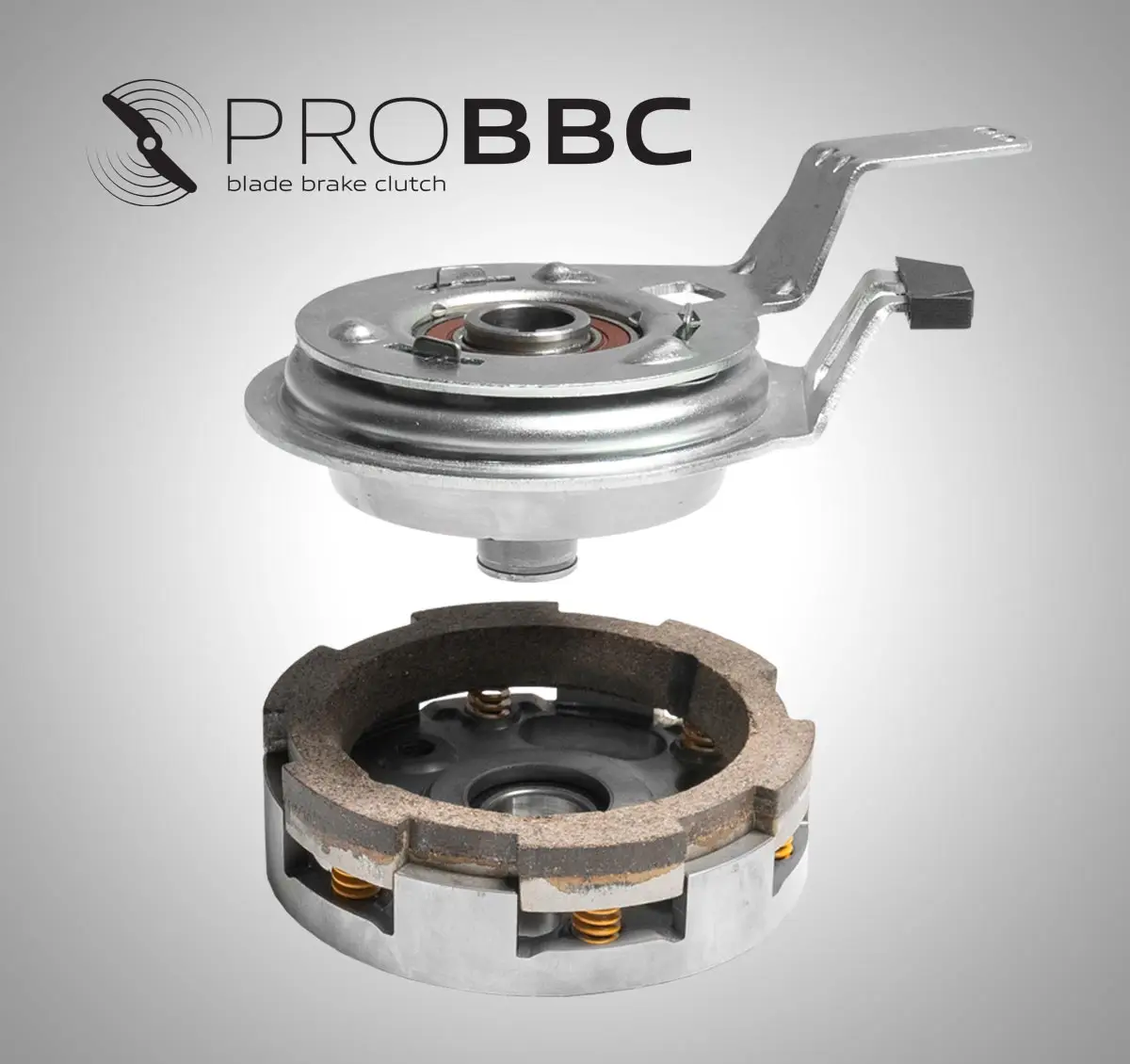

PRO Blade Brake Clutch

Featuring our heavy duty WEIBANG PRO Blade Brake Clutch (BBC), allowing the operator to stop the blades while keeping the engine running. Engineered to the highest standards, the WEIBANG PRO BBC is nearly double the size of other BBC’s on the market and offers unrivalled reliability and serviceability.

PRO 3 Speed Gearbox

The Legacy range features our flagship PRO 3 speed gearbox, offering the ultimate in performance and reliability for the professional user. Engineered to the highest standards, the gearbox is nearly double the size of other models on the market with 3 solid gears and features a full 3 year commercial warranty.

Aluminium Cutter Deck

All Legacy rear roller mowers feature a high performance aluminium cutter deck in either 48 or 56cm cutting width. Designed for optimum airflow to ensure high collection performance in all conditions, the deck also features a durable hammered paint finish and a 25 year guarantee.

XCV200 Engine featuring Vibration Control Technology

The WEIBANG XCV200 offers an exceptionally reliable engine with professional performance. With 196cc and 3.5kW power output, the XCV200 has all the power and torque required to offer a consistently high quality cutting finish in any conditions. Thanks to vibration control technology, the engine dramatically reduces vibration levels for all day use.

Heavy Duty Rear Roller

The rear roller of the Legacy range has a unique design unlike any other roller mower. The split steel ribbed roller is connected with an industrial grade roller ratchet which is encased in a vacuum locked seal to prevent grass, dirt and water from entering. For additional durability the roller chain cover has been specially heat treated and reinforced to avoid wear during use.

Full Deck Protection

The cutter deck of the Legacy features fully replaceable protection, with a steel inner deck liner to prevent damage from stones and other objects, and outer steel deck liners to protect the aluminium deck when mowing near walls or other inevitable knocks during use.

CPS – Crank Protection System

All WEIBANG Legacy commercial mowers feature CPS – Crank Protection System, whereby the blade is mounted via a friction disc to avoid damage to the crankshaft in the event of hitting an obstacle such as a stone or tree root. (excludes BBC models)

VRS – Vibration Reduction System

The Legacy features WEIBANG’s Vibration Reduction System (VRS). This is a heavy duty aluminium bracket with a rubber AV liner that dampens vibration through the handles, as well as adding additional strength and durability.

The quick release handles also feature an aluminium ratchet system with cable protection, allowing for full height adjustment to suit any operator while keeping cables safe.

Central Height Adjustment

The central height adjustment is supported by a heavy duty spring for assistance. With a choice of 11 positions between 13 and 67mm the Legacy is capable of tackling anything from a short formal lawn to more natural areas. The height of cut can be adjusted in 5/6 mm increments allowing for the perfect finish and stripe on any lawn.

Heavy Duty Bumper & Air Fins

The cutter deck and front wheels are protected from accidental knocks by a heavy duty front bumper, which doubles up as a lifting handle for transportation. The integrated fins mounted at the front of the cutter deck allow maximum airflow into the cutter deck, ensuring the highest collection performance at any cutting height.

Optional Stripe Brush

The optional stripe brush is fully adjustable and can be lowered into position when working, and raised up for transportation. The brush itself also features a height adjustment to alter the intensity when in use. The brush does not require any tools to remove when not being used and incorporates a bumper, rather than the original bumper being used.

Emptying Handle

The collector features a full width rear handle that doesn’t pinch the collector during emptying, resulting in easier and faster emptying of the large fabric bag.

Easy Cable Access

All models feature an open back cockpit design, offering simple easy access to cables for adjustment or routine maintenance. Furthermore, the cables feature a heavy duty design with dust covers and spring mountings for added durability.

Durable Grip & Replaceable Bushes

The handles feature a high density professional grip for comfort and durability over long periods of use. The OPC and drive levers are fitted into replaceable plastic bushes for smooth operation and an extended life.
